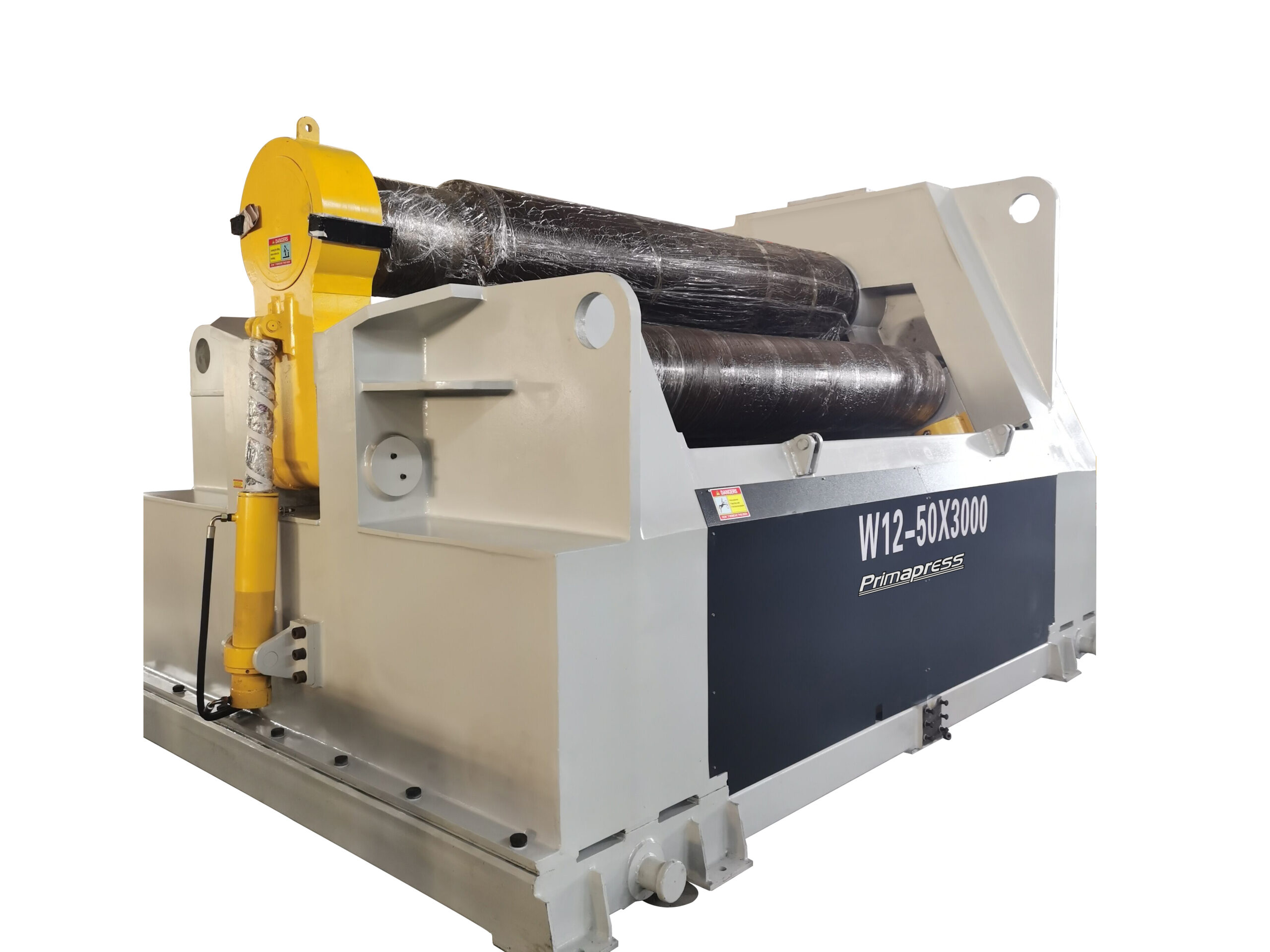

W12 CNC 50X3000mm four rolls plate bending machine 4 roller rolling machine

Description

W12 CNC 50X3000mm four rolls plate bending machine 4 roller rolling machine

Machine Main Applications and Usage Scope

   W12 four roller plate bending machine is produced for metallic plate bending and emendation, which specially suits for metallic plate figuration work. Canister, arc and etc. workpieces can be bent after one feeding, besides, extensive emendation is also available. W12 four roller plate bending machine is widely used in shipbuilding, boiler, avigation, bridge, hydroelectricity, chemical industry, metal structure, and machinery producing industry.

W12-50×2000 four rolls plate bending machine 4 roller rolling machine
1. Max. Thickness of plate 50mm(CS),40mm(SS)
2. Max. Pre-bending thickness 40mm(CS),30mm(SS)
3. Max. Width of plate 2100mm
4. The length of working rolls 2150mm
5. Up roller diameter 560mm
6. Bottom roller diameter 510mm
7. Side roller diameter 440mm
8. Minimum bending diameter 1100mm
9. Yield limit 245MPa
10. Bending speed 4m/min
11. Main motor 45KW
12. Weight 43000KGS
13. Dimension 6500x2700x2700mm

W12-50×2500 four rolls plate bending machine 4 roller rolling machine
1. Max. Thickness of plate 50mm(CS),40mm(SS)
2. Max. Pre-bending thickness 40mm(CS),30mm(SS)
3. Max. Width of plate 2500mm
4. The length of working rolls 2550mm
5. Up roller diameter 600mm
6. Bottom roller diameter 550mm
7. Side roller diameter 470mm
8. Minimum bending diameter 1200mm
9. Yield limit 245MPa
10. Bending speed 4m/min
11. Main motor 45KW
12. Weight 50000KGS
13. Dimension 7000x2900x3200mm
