Description

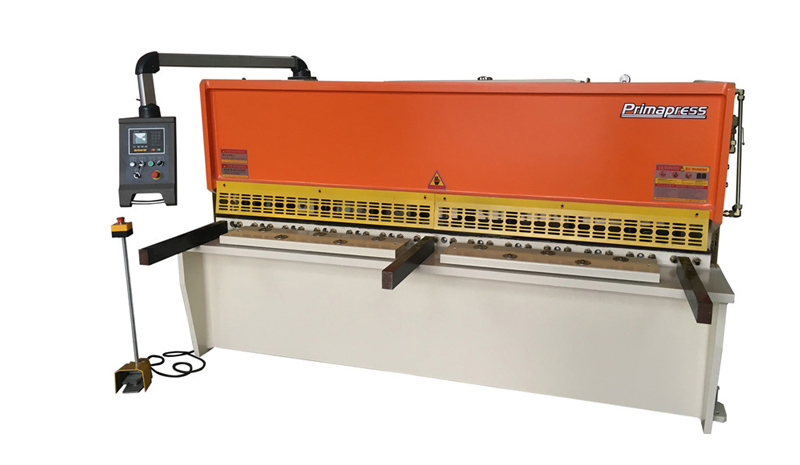

Swing Beam Metal shearing machine swing beam shear machine
Main Features:
1.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
2.Adopt integrated hydraulic system, more reliable and easy for maintenance.and the hydraulic system from Bosch-Rexroth,Germany,
3.The Hydraulic Guillotine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity.
4.The distance of the backgauge is adjusted by the motor and is well adjustment is displayed by E21with Delta inverter.
5.Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.
6.Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety to CE regulation.
- Standard Equipment:
- Estun E21sNC controlSystem
- PoweredBack gaugeX-axis
- DELTAInvertercontrolled back gauge
- HIWIN Ball screws & Polished rodwith 0,05mm accuracy.
- Squaring Arm and Front Support Arms
- Germany Bosch-Rexroth Hydraulic
- Germany EMB Tubing connector
- Germany Siemens Main Motor
- Telemecanique/SchneiderElectrics
- Hydraulic &Electrical overload protection
- Cutting Line Illumination and wire for shadow line cutting
- Top blade with two cutting edges and bottom blade with four cutting edges.(6CrW2Si)
- Safety Equipment:
- Safety Standards(2006/42/EC):1.EN 12622:2009 + A1:2013 2.EN ISO 12100:2010 3.EN 60204-1:2006+A1:2009
- Front finger Protection(Safety light curtain)
- South Korea Kacon Foot Switch(Level 4 of safety)
- Back metal safe fencewith CE standards
- Safety relay with Monitor the pedal switch and safety protection4,Main Configuration:
Serial No. Part Description Brief instruction/ Orignal Other 1- NC Control system ■E21s NC System□E10s NC System 2- Electrical components Schneider Electrical from French Travel switch & Limit switch 3- Main Motor Siemens from Germany Brand 4- BackGauge & RAM Drive Inverter from Taiwan delta Accurate positioning control 5- Foot switch KACON from South Korea 6- Hydraulic System Bosch-Rexroth form Germany Sealing Element PARKER from U.S.A Brand 7- Tubing connector EMB form Germany Brand 8- Ball screw/ Polished rod HIWIN from TaiWan Brand 2.Equipment 1- Pneumatic sheet support system □Yes■No 2- Rear sheet sliding plates ■Yes □No Fixed type(metal) 3- Angle Gauge □Yes■No 4- Squaring Arm(800mm) ■Yes □No 5- Inverter accurate control ■Yes □No 6- Light curtains for finger Protection □Yes■No Reset button 7- Back safety Sensors □Yes■No 8- Back metal fence Safety ■Yes □No 9- Safety standards ■CE □CSA □NR-12 □OSHA 5,Main specifications:
Shearing thickness | Shearing width | Number of stroke mm | Backgauge range mm | Shearing angler | Backgauge range mm | Motor power KW | |
6×2500 | 6 | 2500 | 16~35 | 20-600 | 30’-1°30 | 600 | 7.5 |
6×3200 | 6 | 3200 | 14~35 | 20-600 | 30’-1°30 | 600 | 7.5 |
6×4000 | 6 | 4000 | 10~30 | 20-600 | 30’-1°30 | 600 | 7.5 |
6×5000 | 6 | 5000 | 10~30 | 20-800 | 30’-1°30 | 800 | 11 |
6×6000 | 6 | 6000 | 8~25 | 20-800 | 30’-1°30 | 800 | 11 |
8×2500 | 8 | 2500 | 14~30 | 20-600 | 30’-1°30 | 600 | 11 |
8×3200 | 8 | 3200 | 12~30 | 20-600 | 30’-2° | 600 | 11 |
8×4000 | 8 | 4000 | 10~25 | 20-600 | 30’-2° | 600 | 11 |
8×5000 | 8 | 5000 | 10~25 | 20-800 | 30’-2° | 800 | 15 |
8×6000 | 8 | 6000 | 8~20 | 20-800 | 30’-2° | 800 | 15 |
12×2500 | 12 | 2500 | 12~25 | 20-800 | 30’-2° | 800 | 15 |
12×3200 | 12 | 3200 | 12~25 | 20-800 | 30’-2° | 800 | 15 |
12×4000 | 12 | 4000 | 8~20 | 20-800 | 30’-2° | 800 | 15 |
12×5000 | 12 | 5000 | 8~20 | 20-800 | 30’-2° | 800 | 22 |
12×6000 | 12 | 6000 | 6~20 | 20-1000 | 30’-2° | 1000 | 30 |
16×2500 | 12 | 2500 | 12~20 | 20-800 | 30’-1°30 | 800 | 22 |
16×3200 | 16 | 3200 | 12~20 | 20-800 | 30’-1°30 | 800 | 22 |
16×4000 | 16 | 4000 | 8~15 | 20-800 | 30’-1°30 | 800 | 22 |
16×5000 | 16 | 5000 | 8~15 | 20-1000 | 30’-1°30 | 1000 | 30 |
16×6000 | 16 | 6000 | 6~15 | 20-1000 | 30’-1°30 | 1000 | 37 |
20×2500 | 20 | 2500 | 10~20 | 20-800 | 30’-3° | 800 | 30 |
20×3200 | 20 | 3200 | 10~20 | 20-800 | 30’-3° | 800 | 30 |
