Raycus IPG 1000w 2000w 3000w Fiber laser cutter machine, 1kw 2kw 3kw metal fiber laser cutting machines
1.Working area: 4000mm*1500mm/3000mm*1500mm/6000mm*1500mm
(8.2*4.26feet/9.8*4.9feet/13*4.9feet)
2.Fiber power: 500w/750w/1000w/1500w/2000w/3000w.
This fiber laser machine is manufactured in September,2017. With a beautiful appearance.
The working area is 2500mm*1300mm,3000mm*1500mm,4000mm*1500mm,fiber power can be 500w/750w/1000w/1500w/2000w/3000w,it is able to cut up to 20mm mild steel.
| working area2500mm*1300mm/3000mm*1500mm/4000mm*1500mm | laser power 1000w/1500w/2000w/3000w |
| Maximum velocity of movement 100m/min | X/Y axis repeated positioning accuracy±0.02mm/m |
Cutting Materials and Thickness
| Stainless Steel | 0.4-3mm | 0.4-4mm | 0.4-5mm | 0.4-6mm | 0.4-8mm | 0.4-10mm |
| Carbon Steel | 0.4-6mm | 0.4-10mm | 0.4-12mm | 0.4-14mm | 0.4-16mm | 0.4-20mm |
| Aluminum | 0.4-2mm | 0.4-3mm | 0.4-3mm | 0.4-4mm | 0.4-6mm | 0.4-8mm |
| Brass | 0.4-3mm | 0.4-3mm | 0.4-3mm | 0.4-8mm | ||
| Fiber Power | 1000W | 1500W | 2000W | 3000W |
More details about other thin metal materials,just leave your message on line or send e-mail to sale@lmcnclaser.com .
Features
- Stable and reliable light path system and control system.
- Imported original fiber laser generator with great and stable performance to have lifespan over 100,000 hours.
- High cutting quality and efficiency with cutting speed up to 25m/min and beautiful,smooth cutting edge.
- High performance reducer,gear and rack;guide rail and ball screw to guarantee stable running.
Application
The machine is specially used for cutting 0.4-20mm carbon steel;0.4-10mm stainless steel,galvanized steel;0.4-8mm aluminum alloy;0.4-6mm brass and various other thin metal.

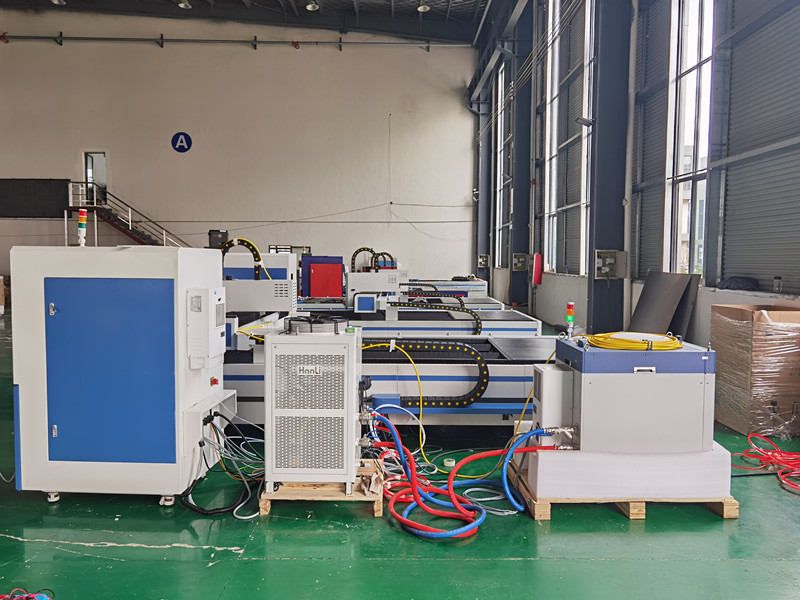

Real Life photos:
