Description
punching hole meshes metal sheet perforating machine plate CNC hydraulic hole Punching machine
Video link:
https://youtu.be/F_YScSbS1Xk
About press machine:

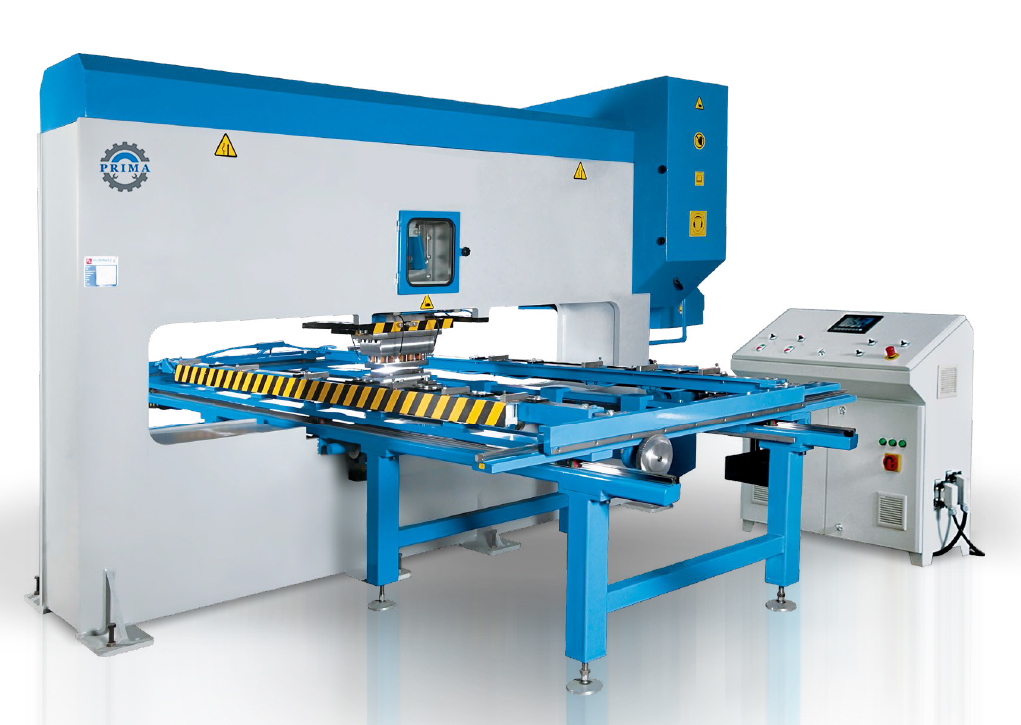

This gantry type press machine is our new patent design . it can hold the big sheet metal like the 1250*2500mm or 1500*3000mm sheet metal go in through the inside body , so the punching force can concentrate in the center ,this can give the best accuracy of punching , and longer the mold punching line , also the machine body will be very strong , much stronger than the C type .
It can work together with the cnc feeding table , so it is best using in punching some holes in sheet metal , stainless steel sheet , aluminium sheet metal and so on , widely used in wire mesh, cable tray industry and so on .
Technical Parameters:
| Model Items | 30T | 63T | 80T | 100T | 125T | 160T |
| Norminal force（KN） | 300 | 630 | 800 | 1000 | 1250 | 1600 |
| Slide block stroke（mm） | 80 | 100 | 112 | 120 | 140 | 140 |
| Number of stroke（T/mm） | 55 | 56 | 45 | 50 | 40 | 40 |
| Max die set height（mm） | 240 | 275 | 300 | 320 | 340 | 370 |
| Die set height adjusdment（mm） | 56 | 63 | 70 | 80 | 90 | 120 |
| Distance from slide block centre to the frame（mm） | 235 | 245 | 250 | 305 | 330 | 420 |
| Max tilting degree(°) | 25 | 25 | 25 | 20 | 20 | 30 |
| Size of the handle hole （mm） | Φ50 | Φ50 | Φ60 | Φ60 | Φ60 | 60 |
| Worktable thickness（mm） | 70 | 80 | 90 | 110 | 120 | 130 |
| Motor （kw） | 4.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Distance between columns of body（mm） | 2250 | 2280 | 2320 | 2390 | 2400 | 2420 |
| Effective width (mm) | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 |
| Rough weigth （kg） | 5400 | 7180 | 8500 | 10000 | 13100 | 18500 |
