High speed and speed adjustable C Frame Single Crank Press for Cookware Pots C Type Hydraulic Press Machine
C-frame Deep drawing Press Forming Machine Hydraulic Press 125 tons C frame hydraulic deep drawing press machine/Taiwan C Type Hydraulic Press / Hydraulic Drawing Machine Press from Primapress

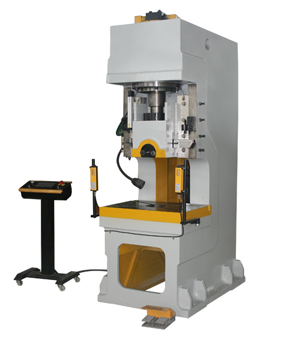

C Type Hydraulic Press Characteristics:
1) C frame steel structure with 3 sides open for flexible and easy operation. With energy saving design concept, it enjoys low energy consumption but fast speed.
2) Hydraulic system is installed in-housed which could save space and its loop is specially designed based on the latest advanced Taiwan technology, all contributing to compact structure, little fault and easy maintenance.
3) Pressure and stroke are easy to be adjusted on the 7 inch touch screen so as to facilitate various production requirements and improve work efficiency.
4) Japan DAIKIN SERVO control system is adopted for faster speed, less energy consumption, lower noise, longer life span and cleaner working environment.
China manufacture C-frame hydraulic press machine Optional:
1) Touch Screen Display (HMI)
2) Heating available by Electric Heaters / Heat Transfer Oil / Steam
3) Trolley / Moving Bolster for easy die change
4) Cushion Device for anti-shock while stamping
5) Water Cooler / Oil Chiller
6) Mould Stripping Device
7) Air breathing design as per request
8) Accumulators for fast speed and low energy consumption
Particularly applied in the following industries:
1) Automobile Industry: Steel ring, vehicle body, chasis, axle housing, fuel tank, door, wheelbarrow tray and more.
2) Household Appliance Industry: Components for air conditioner, refrigerator, washing machine, microwave oven, electric cooker etc.
3) Kitchen Ware Industry: Stainless steel utensil, LPG cylinder, cooking bench, etc.
4) Aluminum Cookware.
Applications:
1. Compressing and pulling-out of shafts and sleeves.
2. Bending and deep-drawing of metal sheets.
3. Trimming, pressing, braking and punching of metal sheets.
4. Applicable for compressibility test.
5. Counter body and sheet metal parts.
6. OA steel furniture drawers and rail parts.
7. Air-conditioning cold air machine’s shell parts.
| Type (HPP) | Unit | HPP-10T | HPP-20T | HPP-30T | HPP-45T | HPP-60T | HPP-80T | HPP-100T | |
| Nominal Pressure | KN | 100 | 200 | 300 | 450 | 600 | 800 | 1000 | |
| HydraulicCushion Optional | Capacity | KN | 30 | 50 | 50 | 100 | 120 | 150 | 200 |
| Stroke | mm | 100 | 120 | 120 | 120 | 140 | 150 | 150 | |
| Max.Pressure | Map | 8 | 12.8 | 16 | 22.2 | 24.3 | 25.8 | 25.8 | |
| Max.Opening Height | mm | 500 | 500 | 550 | 600 | 630 | 720 | 800 | |
| SlideStroke | mm | 300 | 350 | 350 | 400 | 500 | 500 | 500 | |
| AccuracyError RangeBetweenTables | ±0.01mm | ||||||||
| Speedof Slide | ReturnSpeed | mm/sec | 220 | 205 | 250 | 280 | 300 | 300 | 180 |
| WorkingSpeed | mm/sec | 5~10 | 5~15 | 10~25 | 5~25 | 8~50 | 8~50 | 8~50 | |
| AdvanceSpeed | mm/sec | 360 | 350 | 350 | 220 | 250 | 260 | 250 | |
| Throatdepth | mm | 250 | 280 | 300 | 320 | 350 | 350 | 350 | |
| Table Surfaces | F.B. | mm | 430 | 500 | 500 | 550 | 620 | 650 | 750 |
| L.R. | mm | 550 | 600 | 600 | 700 | 700 | 800 | 1000 | |
| Ram TableSurfaces | F.B. | mm | 300 | 350 | 350 | 380 | 450 | 450 | 500 |
| L.R. | mm | 410 | 450 | 450 | 500 | 500 | 550 | 650 | |
| WorktableHeight | mm | 700 | 710 | 710 | 710 | 720 | 730 | 730 | |
| WorkTableOpening Diameter | mm | Φ80 | Φ100 | Φ100 | Φ100 | Φ140 | Φ140 | Φ140 | |
| Hydrauliccylinder diameter | mm | Φ125 | Φ125 | Φ140 | Φ150 | Φ180 | Φ200 | Φ220 | |
| Motor Power | Kw | 4 | 4 | 4 | 5.5 | 7.5 | 7.5 | 7.5 | |
| Overall Dimension | L.R. | mm | 950 | 1050 | 1100 | 1250 | 1450 | 1500 | 1550 |
| F.B | mm | 630 | 650 | 650 | 780 | 800 | 950 | 1050 | |
| Height | mm | 1950 | 2100 | 2150 | 2300 | 2500 | 2560 | 2800 | |
| MachineWeight | Kg | 1200 | 1700 | 2200 | 3100 | 4600 | 5300 | 6800 | |
