Description

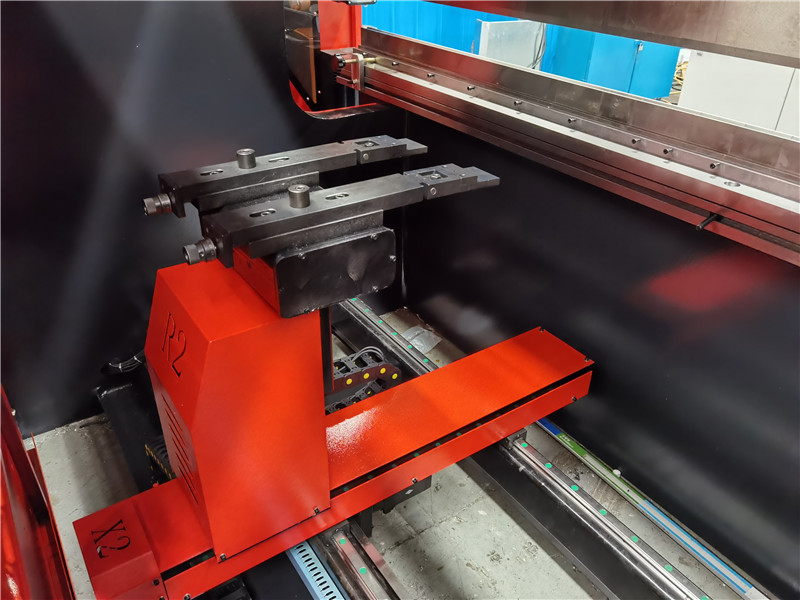

Delem CNC Synchronized Press Brake bending 8axis DA69T CNC Press Brake DA69t

Primapress and Primalaser is a famous manufacturer of metal sheet equipments in world market. Its Brand Primapress and Primalaser has been leading brand

for many years in the field of international metal sheet equipments. Our group devote ourselves to product development, production and sales. Our main products are:

CNC Press Brake, guillotine Shears, Hydraulic press, cnc fiber Laser Cutter machine and CNC rolling machine these sheet metal processing equipments.

we are using advanced technology from German, Japan, and Italy.we can produce large Hydraulic Press and Press Brake more than 16000 ton &

16m and cnc fiber laser cutting machine from 1kw -30kw high power .we are with professional R&D team, and we have World-class design and manufacturing capabilities.

1. High precision, Wide application
2. EU CE Certification
3. CQC, ISO9001: 2008
4. High performance,
5. Easy to operation.
The whole structure of the hydraulic press brake:
– Welded structure: The stress of the welded parts can be eliminated by vibration; So this forging press gives high accuracy.
– Frame: Consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration.

The machine enjoys high accuracy and high strength and can be transported easily.
– High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.

Specification for CNC sheet metal hydraulic Press Brake

Model(Primapress )			1560	2580	32110	32135	32175	40175	32220
Bending force		KN	600	800	1100	1350	1750	1750	2200
Bending Length		mm	1500	2500	3200	3200	3200	4200	3200
Between Columns		mm	1100	2060	2700	2700	2700	3700	2700
Daylight		mm	405	405	430	430	430	430	430
Slide Stroke		mm	200	200	200	200	200	200	200
Throat Depth		mm	370	400	400	400	400	400	400
Bolster Width		mm	80	80	100	100	100	100	140
Down Speed		mm/min	200	200	180	180	160	160	160
Pressing Speed		mm/min	8	8	10	10	10	10	10
Return Speed		mm/min	180	180	150	150	150	150	140
Back Gauge Stroke		mm	500	600	800	800	800	800	800
Outline Size	L	mm	1825	2825	3500	3550	3500	4500	3500
	W	mm	1650	1650	1650	1650	1650	1650	1730
	H	mm	2300	2350	2650	2700	2700	2750	2900
Weight		kg	4600	5600	8000	9500	10000	12000	13200
