Description

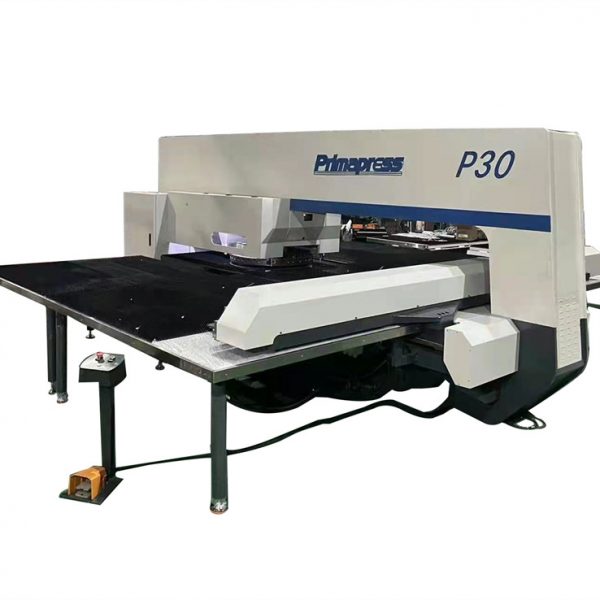

China P30T metal plate hole CNC Turret punch machine cnc turret punching machine with index mold
Brief Introduction
Specifications
- Nominal force KN 300
- Workpiece size mm 1500×3000
Max workpiece weight Kg 156
- Max workpiece thickness mm 6.35
5.Max punch diameter mm Ф88.9
6.Number of stations 32
Working accuracy mm ±0.1
Max. hit speed HPM 600
Workpiece traveling speed m/min 106
Turret speed r/min 30
Frame construction Closed-type
Throat mm 1275
Number of control axis 5 axes (X, Y, T, C)
Max rotary station punching diameter mm Ф50.8
Repeatability mm 0.02
Number of clamp 2
Clamp type Pneumatic type
Heat treatment of the frame Tempering
Tool type Long guide sleeve type
(AMADA)
Turret construction Long bushing in the thin turret
Air pressure Mpa 0.6
Machine dimension (L*W*H) mm 5300*4000*2200
Machine weight kg 15500
- China P30T metal plate hole CNC Turret punch machine cnc turret punching machine with index mold Machine Feature
- Advanced and reliable Hydraulicdrive system can select stroke automatically corresponding to different thickness of metal sheet and is convenient to realize special process of louver, blanking, etc. The punch is equipped with auto Hydraulicoverload protection device, and guarantees consistent pressing force for quality products.
- The punch is of FANUC 0iP control system.
- Rotary tooling stations are of worm wheel structure with max. punching diameter of Ф50.8.
- Dual turret is of long insert structure ensuring coaxiality of the punch and die, which gives long life to the tool and turret.
- Imported pneumatic and Hydrauliccomponents guarantee reliability of the machine.
Imported ballscrews with long travel, and linear guideways ensure transmission precision.
The worktable with hard brush and steel ball reduces noise and shock of the machine, and protects surface of the work piece.
The machine is straight-side frame, which is annealed for eliminating inner stress.
The clamps with auto protection function, in the protective zone, only excise movement without punching action for continuous operation.
10．Central lubrication device provides lubricant oil to the desired points to reduce friction of pairing elements for long machine life.
12．Tool station layout consists of A、B、C、D, which is convenient for the customer and save the tool cost.
13．Common requirement is for site foundation preparation and machine installation is simple.
3．China P30T metal plate hole CNC Turret punch machine cnc turret punching machine with index mold Main Imported Components List
| 1 | Control system | 1 set | Germany Siemens |
| 2 | Servo unit and motor | 3 set | Germany Siemens |
| 3 | Hydraulic punching head | 1 set | German H & L |
| 4 | Ballscrews | 2 | THK Japan |
| 5 | Linear guideways | 4 | THK Japan |
| 6 | Supporting bearing for ballscrews | 8 | Japanese NSK |
| 7 | Supporting bearing for turret | 4 | French TIM |
| 8 | Pneumatic component | 1 set | Japanese SMC |
| 9 | Connector | 1 set | Korean SANG-A |
| 10 | Coupling | 10 set | German KTR |
| 11 | Main electronic elements | 1 set | Imported |
- Germany SiemensControl System
- System configuration
Step punch function, graphic function, applicable program and data of CNC memory and definition 0.1μm.
Simple international G code for operation.
Standard RS232 interface with the PC.
Advanced AC servo system and servo motor modular design for easy maintenance.
Outstanding MMC dialogue function between the machine and operator.
Color TFT 10.4″display.
Chinese and English versions are available.
Programming on line and background programming.
- i) Distance diagnosis function. System functions
- a) Linear axis: X-axis, Y-axis; Rotary axis: T-axis, C-axis.
Self-diagnosis function.
- b) International G code programming.
- c) Soft limit protection function and repositioning function.
- d) Pitch compensation function and reverse gap compensation function.
- e) Different operation modes such as Auto, Manual, Semi-auto, etc.
- f) Clamp protection function.
- g) Parameter programming function and subroutine recall function.
- h) Quick positioning function.
Various M function and other supporting function.
Absolute, incremental programming; conditional and non-conditional skip function.
Warning indication for overload, overflowing, over-travel and various Hydraulic and electronic faults.
The control system special for CNC turret punch China P30T metal plate hole CNC Turret punch machine cnc turret punching machine with index mold
