Description
3d cnc wire bending machine, Cnc wire bender machine 3D
Video link in Youtube:

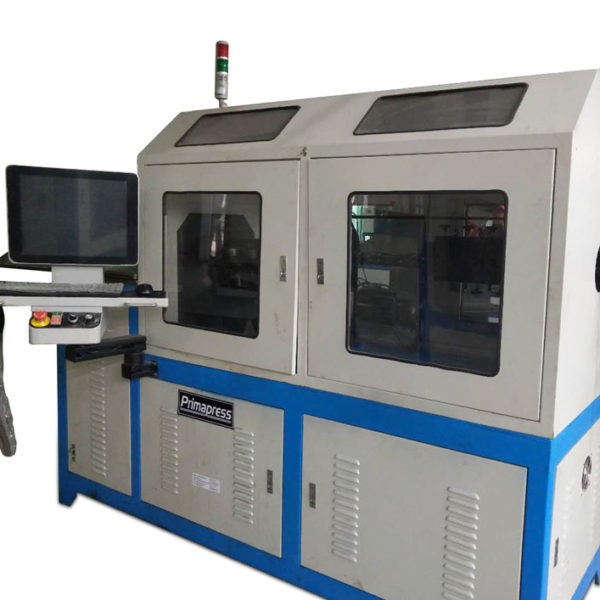

3D CNC Metal Wire Bending Machine：
3D CNC wire bending machine is to produce kinds of wire forms expertly with high precision and fast speed. Adopts Japanese Sanyo Denki servo motor and screen display with Taiwan controller.
Advantages & Main Features
1)3-4 pairs feeding roller,feeding motor fixed on the bottom base, so as to decrease the feeding box weight,that wire rotation is more fast and stable.
2)Twist head is designed in copper tube transport, more stable and stronger than bearing transfer
3) Adopting advanced world famous brand components in CNC parts ,electric parts and operation parts.
4) Running in a high automatization and intellectualization,no pollutions.
Technical Parameters
| Model | PM3D | |
| Bending Diameter | 2-6&5-10&6-13mm | |
| Feeding Speed | 70m/min | |
| Twisting head off 90 ° minimum time required | 0.1s | |
| Reverse the core conversion minimum time required | 0.1s | |
| Lane 90 ° minimum time required | 0.08s | |
| Maximum speed lifting platform | 333mm/sec | |
| Maximum lifting speed reversing mechanism | 250mm/sec | |
| The maximum feed stroke | Unlimited | |
| Feeding mode | Wheel Wire; | |
| Maximum bending radius | 50mm | |
| Maximum bending angle | 190° | |
| Each number can be set bend | Unlimited | |
| Set the number of files | Unlimited | |
| Working speed | Bending speed | 180°/0.5sec |
| Rotation speed | 360°/2sec | |
| Feeding speed | 700mm/1sec | |
| Accuracy | Bending angle | ±0.05° |
| Rotation angle | ±0.05° | |
