Description

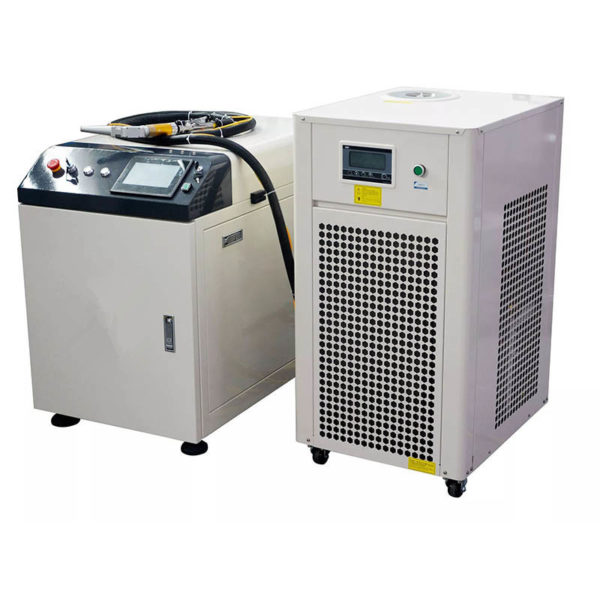

1kw Fiber laser welding machines, handheld fiber laser welder machines, portable laser welding machine
Video link in Youtube:
Primapress fiber laser welding machine is launched in the market now.
upon launched, our Primapress loyal customer is purchased 10 sets.
Product Application :

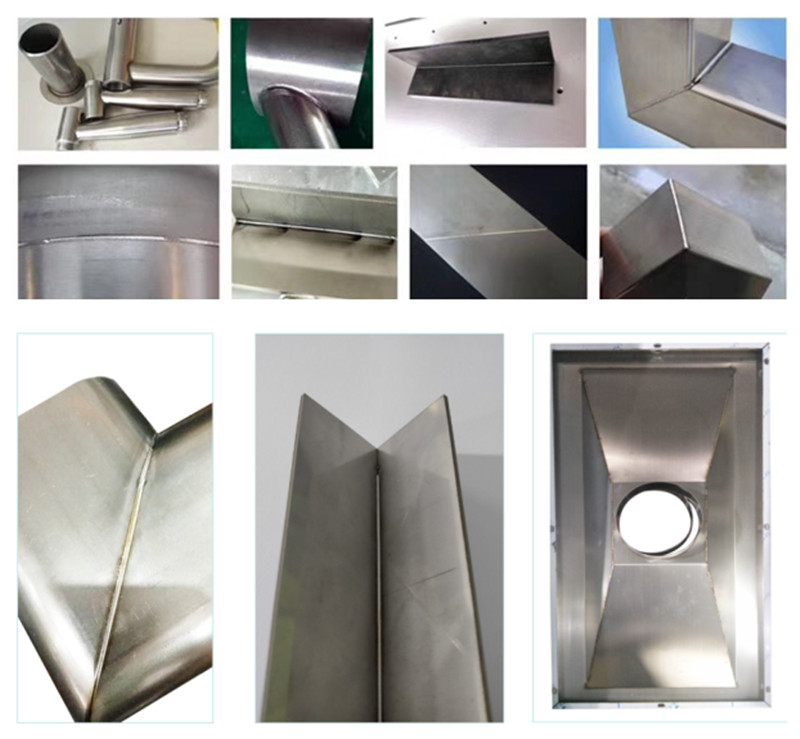

This kind of machine is widely used in communications devices , IT ,medical , electronics , batteries tab-lead , fiber-optic coupling devices ,
CRT electronic gun , metal parts , cell phone vibrating motors , clocks precision parts , automotive sheet steel optical communications
industry copper parts , aluminum parts etc precision welding .
Model features:
★High energy density, low heat input, small amount of thermal deformation, and narrow melting depth in the heat and heat affected zone of the melting zone.
★The cooling rate is high, so that the weld structure can be fine and the joint performance is good.
★ Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly improving work efficiency.
★The weld is fine, the penetration is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.
★ No consumables, small size, flexible processing, low operating and maintenance costs
★The laser is transmitted through the optical fiber and can work with the assembly line or the robot.
Product advantages:
The laser welding machine adopts 150-3000 watt fiber laser source, which has high photoelectric conversion efficiency and long life of 100,000 hours. The energy provided by electric energy is 25%-30% converted into laser energy, and the photoelectric conversion rate is many times that of YAG laser.
Other Technical parameters
| Power / Material Weld depth | Stainless Steel | Mild steel | Galavinised Steel |
| 500W | 0.5-1mm | 0.5-1mm | 0.5-1mm |
| 750W | 0.5-1.7mm | 0.5-1.32mm | 0.5-1.2mm |
| 1000W | 0.5-2.7mm | 0.5-2.0mm | 0.5-2mm |
| 1500W | 0.5-3.6mm | 0.5-2.7mm | 0.5-2.8mm |
| 2000W | 0.5-4.6mm | 0.5-3.6mm | 0.5-3.5mm |
